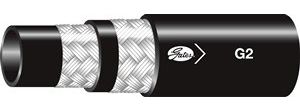

Gates 6G2XREEL - 70606 Hydraulic Hose - REPLACED BY: 6G2LXREEL - 70287
SKU | 4657-0126 |
---|---|
Weight | 0.345000 |
Hose Id (in) | 3/8 |
Max Working Pressure | 4800 |
Min Burst Pressure (psi) | 19200 |
Minimum Bend Radius (in) | 5 |
Hose Od (in) | 0.74 |
Up Sell 3 | 6G2X50FT |
Up Sell 4 | 6G2X100FT |
Cross Sell | Gates 6G2 Hydraulic Hose Assembly |
Brand | Gates |
Special Order: Typically ships in 5 to 10 business days
$5.79
Same Hose – Purchase in Different Increments:
Title | Sold By The | Priced Per | Purchase in Increments of |
---|---|---|---|
Gates 6G2XFT - 70606 Hydraulic Hose | ft | ft | |
Gates 6G2XBALE - Hydraulic Hose | Bale | ft | 3000 ft |
Gates 6G2X50FT - 86622 Hydraulic Hose - REPLACED BY: 6G2LX50FT - 85733 | 50 ft Box | 50 ft Box | |
Gates 6G2X100FT - 86632 Hydraulic Hose | 100 ft Box | 100 ft Box |
Recommended Couplings:
Gates 6G2 Product Features:
Use: | High Pressure |
Recommended For: | High-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. |
Cover: | Black, oil and abrasion resistant, synthetic rubber (Modified Nitrile - Type C2). See Hose Stock Characteristics. |
Reinforcement: | Two braids of high-tensile steel wire. |
Tube: | Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. |
Temperature Range: | -40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table. |
Meets These Agency Specifications: | ABS - American Bureau of ShippingDNV - Det Norske Veritas (North Sea Floating Vessels), InternationalDIN - Deutsch Industry Norm, InternationalGL - Germanischer Lloyd's, InternationalMSHA 2G - Mine Safety & Health Administration, USAAS - Australian StandardBV - Bureau Veritas (Marine Division), InternationalFRAS - Fire Retardant Anti Static, AustraliaLR - Lloyd's Register, InternationalUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm |
Standard Industry Specifications: | EN 853 2SNSAE 100R2 Type SISO 1436 2SN R2 |
This Product Replaces the Following:
Product ID:46570126
Product Name:70606 6G2XREEL
Product ID: 46570626 Product Name:HOSE 6G2 3/8" BULK 70235
Product ID: 46570626 Product Name:
