Gates 8G-12FL45M - G25307-0812 Hydraulic Hose Fitting
| SKU | 7103-27165 |
|---|---|
| Weight | 0.120000 |

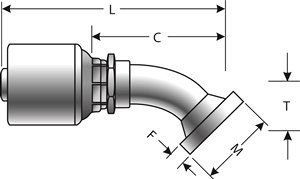

| L Length (in) | 4.13 |
| L Length (mm) | 104.8 |
| T Drop (in) | 1.02 |
| T Drop (mm) | 26 |
| C Cutoff (in) | 2.65 |
| C Cutoff (mm) | 67.3 |
| F Flange Head Thickness (in) | 0.27 |
| F Flange Head Thickness (mm) | 6.9 |
| M Flange Diameter (in) | 1.5 |
| M Flange Diameter (mm) | 38.1 |
| Part Number 1 | 8G-12FL45M |
| Part Number 2 | G25307-0812 |
| Hose Id (in) | 1/2 |
| Hose Id (mm) | 12.7 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$67.81
- Buy 20 for $66.06 each and save 3%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 8M2T Hydraulic Hose Assembly | 1/2 | 0.82 | 4300 | 17200 | 2.8 |
| Gates 8M3K Hydraulic Hose Assembly | 1/2 | 0.8 | 3250 | 13000 | 2.8 |
| Gates 8G2 Hydraulic Hose Assembly | 1/2 | 0.86 | 4000 | 16000 | 7 |
This Product Replaces the Following:
Product ID:710327165
Product Name:G25307-0812 8G-12FL45M
Product ID: 710004145 Product Name:G25307-0812 8G-12FL45
UPC: 72053409413
Product ID: 710004145 Product Name:
UPC: 72053409413
