Gates 8G-15FDLORX90 - G25655-0815 Hydraulic Hose Fitting
| SKU | 7100-96505 |
|---|---|
| Weight | 0.380000 |

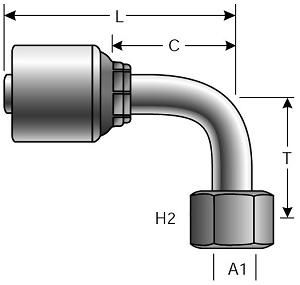

| L Length (in) | 3.06 |
| L Length (mm) | 77.8 |
| T Drop (in) | 1.65 |
| T Drop (mm) | 42 |
| H2 Nut Hex Mm | 27 |
| C Cutoff (in) | 1.59 |
| C Cutoff (mm) | 40.3 |
| Female Thread Id (mm) | 20.5 |
| Male Thread Od (mm) | 22 |
| Up Sell | 7100-9650 |
| Part Number 1 | 8G-15FDLORX90 |
| Part Number 2 | G25655-0815 |
| Hose Id (in) | 1/2 |
| Hose Id (mm) | 12.7 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$53.79
- Buy 5 for $50.13 each and save 7%
- Buy 10 for $47.14 each and save 12%
- Buy 20 for $45.19 each and save 16%
Thread Identification:
| Thread Size | M22X1.5 |
| Female Thread I.D. (in) | 0.807 |
| Female Thread I.D. (mm) | 20.5 |
| Male Thread O.D. (in) | 0.866 |
| Male Thread O.D. (mm) | 22 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 8M2T Hydraulic Hose Assembly | 1/2 | 0.82 | 4300 | 17200 | 2.8 |
| Gates 8M3K Hydraulic Hose Assembly | 1/2 | 0.8 | 3250 | 13000 | 2.8 |
| Gates 8G2 Hydraulic Hose Assembly | 1/2 | 0.86 | 4000 | 16000 | 7 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 8G-15FDLORX90 XBULK - G25655-0815X Hydraulic Hose Fitting | 100 | 100 |
$39.85
|
This Product Replaces the Following:
Product ID:710096505
Product Name:G25655-0815 8G-15FDLORX90
Product ID: 710091765 Product Name:8G-15FDLORX90
UPC: 72053401189
Product ID: 710091765 Product Name:
UPC: 72053401189
