Gates 8G-18FDLORX90 - G25655-0818 Hydraulic Hose Fitting
| SKU | 7100-96525 |
|---|---|
| Weight | 0.370000 |

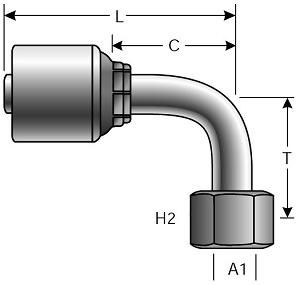

| L Length (in) | 3.21 |
| L Length (mm) | 81.5 |
| T Drop (in) | 2.03 |
| T Drop (mm) | 51.6 |
| H2 Nut Hex Mm | 32 |
| C Cutoff (in) | 1.73 |
| C Cutoff (mm) | 43.9 |
| Female Thread Id (mm) | 24.5 |
| Male Thread Od (mm) | 26 |
| Part Number 1 | 8G-18FDLORX90 |
| Part Number 2 | G25655-0818 |
| Hose Id (in) | 1/2 |
| Hose Id (mm) | 12.7 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$54.37
- Buy 20 for $52.43 each and save 4%
Thread Identification:
| Thread Size | M26X1.5 |
| Female Thread I.D. (in) | 0.965 |
| Female Thread I.D. (mm) | 24.5 |
| Male Thread O.D. (in) | 1.024 |
| Male Thread O.D. (mm) | 26 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 8M2T Hydraulic Hose Assembly | 1/2 | 0.82 | 4300 | 17200 | 2.8 |
| Gates 8M3K Hydraulic Hose Assembly | 1/2 | 0.8 | 3250 | 13000 | 2.8 |
| Gates 8G2 Hydraulic Hose Assembly | 1/2 | 0.86 | 4000 | 16000 | 7 |
This Product Replaces the Following:
Product ID:710096525
Product Name:G25655-0818 8G-18FDLORX90
UPC: 770075418405
UPC: 770075418405
