Gates 8G-8FPX - G25111-0808 Hydraulic Hose Fitting
| SKU | 7100-00595 |
|---|---|
| Weight | 0.350000 |

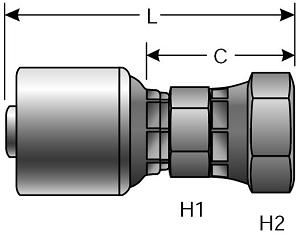

| L Length (in) | 2.88 |
| L Length (mm) | 73.2 |
| C Cutoff (in) | 1.41 |
| C Cutoff (mm) | 35.8 |
| Female Thread Id (mm) | 19 |
| Male Thread Od (mm) | 21.4 |
| Up Sell | 7100-0059 |
| Part Number 1 | 8G-8FPX |
| Part Number 2 | G25111-0808 |
| Hose Id (in) | 1/2 |
| Hose Id (mm) | 12.7 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$21.68
- Buy 25 for $19.04 each and save 12%
- Buy 50 for $18.26 each and save 16%
- Buy 100 for $18.13 each and save 16%
Thread Identification:
| Thread Size | 1/2-14 |
| Female Thread I.D. (in) | 3/4 (0.750) |
| Female Thread I.D. (mm) | 19 |
| Male Thread O.D. (in) | 27/32 (0.844) |
| Male Thread O.D. (mm) | 21.4 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 8M2T Hydraulic Hose Assembly | 1/2 | 0.82 | 4300 | 17200 | 2.8 |
| Gates 8M3K Hydraulic Hose Assembly | 1/2 | 0.8 | 3250 | 13000 | 2.8 |
| Gates 8G2 Hydraulic Hose Assembly | 1/2 | 0.86 | 4000 | 16000 | 7 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 8G-8FPX XBULK - G25111-0808X Hydraulic Hose Fitting | 100 | 100 |
$16.12
|
This Product Replaces the Following:
Product ID:710000595
Product Name:G25111-0808 8G-8FPX
UPC: 72053322903
UPC: 72053322903
