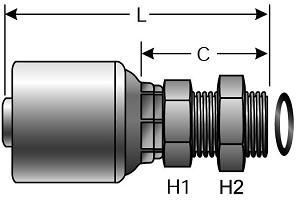

Gates 8G-8MFFORBKHDLNXBULK - G25226-0808X Hydraulic Hose Fitting
| SKU | 7104-1711 |
|---|---|
| Weight | 0.515000 |
| H1 Stem Hex (mm) | 30 |
| L Length (in) | 3.55 |
| L Length (mm) | 90.2 |
| H2 Nut Hex Mm | 30 |
| C Cutoff (in) | 2.07 |
| C Cutoff (mm) | 52.7 |
| Female Thread Id (mm) | 19 |
| Male Thread Od (mm) | 20.6 |
| Up Sell | 7104-17115 |
| Part Number 1 | 8G-8MFFORBKHDLNXBULK |
| Part Number 2 | G25226-0808X |
| Hose Id (in) | 1/2 |
| Hose Id (mm) | 12.7 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$40.45
Thread Identification:
| Thread Size | 13/16-16 |
| Female Thread I.D. (in) | 3/4 (0.750) |
| Female Thread I.D. (mm) | 19 |
| Male Thread O.D. (in) | 13/16 (0.812) |
| Male Thread O.D. (mm) | 20.6 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 8M2T Hydraulic Hose Assembly | 1/2 | 0.82 | 4300 | 17200 | 2.8 |
| Gates 8M3K Hydraulic Hose Assembly | 1/2 | 0.8 | 3250 | 13000 | 2.8 |
| Gates 8G2 Hydraulic Hose Assembly | 1/2 | 0.86 | 4000 | 16000 | 7 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 8G-8MFFORBKHDLN - G25226-0808 Hydraulic Hose Fitting | 1 | 10 |
$47.76
|
This Product Replaces the Following:
Product ID:71041711
Product Name:G25226-0808X 8G-8MFFORBKHDLNXBULK
UPC: 72053975307
UPC: 72053975307
