Gates 8TR500X50FT - 85748 Hydraulic Hose

SKU	4657-2602
Weight	11.420000
Hose Id (in)	1/2
Max Working Pressure	500
Min Burst Pressure (psi)	2000
Minimum Bend Radius (in)	2.3
Hose Od (in)	0.8
Vacuum In Hg	30
Brand	Gates

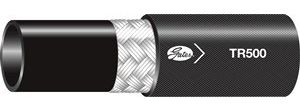

main product photo

Skip to the beginning of the images gallery

Special Order: Typically ships in 5 to 10 business days

$371.38

Buy 2 for $351.31 each and save 5%
Buy 4 for $342.90 each and save 8%

Sold by the: 50 ft Box

Packaging Code: E

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 8TR500XREEL - 70884 Hydraulic Hose	Reel		350 ft

Recommended Couplings:

MegaCrimp® Couplings or GLP Couplings

Gates 8TR500 Product Features:

Recommended For:

Air brake hose, high temperature pressurized oil return lines and rotary oil/air compressor lines, engine and transmission coolant lines and lube oil lines. Meets or exceeds DOT FMVSS 106-74, SAE J1402 for air brake hose (4, 6, 8, 10). Not recommended for gasoline or diesel fuel applications.

Cover:

Oil and mildew resistant, textile braid, impregnated with synthetic rubber.

Reinforcement:

One braid of high-tensile steel wire.

Tube:

Black (Nitrile - Type C). See Hose Stock Characteristics.

Temperature Range:

-40°F to +250°F (-40°C to +121°C). For water emulsions see Temperature Limits Table.

Meets These Agency Specifications:

DOT - Department of Transportation, USASAE - Society of Automotive EngineersFMVSS - Federal Motor Vehicle Safety Standard, USA

Standard Industry Specifications:

SAE J1402

This Product Replaces the Following:

Product ID:46572602 Product Name:85748 8TR500X50FT

Search

My Cart

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
