Gates 12G-10MJ - G25165-1210 Hydraulic Hose Fitting
| SKU | 7103-36315 |
|---|---|
| Weight | 0.550000 |

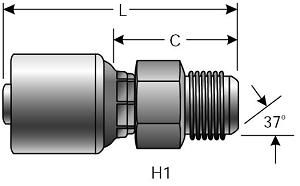

| H1 Stem Hex (mm) | 27 |
| L Length (in) | 3.68 |
| L Length (mm) | 93.5 |
| C Cutoff (in) | 1.67 |
| C Cutoff (mm) | 42.5 |
| Female Thread Id (mm) | 20.6 |
| Male Thread Od (mm) | 22.2 |
| Up Sell | 7103-3631 |
| Part Number 1 | 12G-10MJ |
| Part Number 2 | G25165-1210 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$25.48
- Buy 10 for $24.12 each and save 5%
- Buy 20 for $22.72 each and save 11%
- Buy 25 for $22.26 each and save 13%
- Buy 40 for $21.72 each and save 15%
- Buy 50 for $21.49 each and save 16%
Thread Identification:
| Thread Size | 7/8-14 |
| Female Thread I.D. (in) | 13/16 (0.812) |
| Female Thread I.D. (mm) | 20.6 |
| Male Thread O.D. (in) | 7/8 (0.875) |
| Male Thread O.D. (mm) | 22.2 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12M2T Hydraulic Hose Assembly | 3/4 | 1.11 | 3500 | 14000 | 3.8 |
| Gates 12M4K Hydraulic Hose Assembly | 3/4 | 1.17 | 4000 | 16000 | 3.8 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 12G-10MJXBULK - Hydraulic Hose Fitting | 60 | 60 |
$19.10
|
This Product Replaces the Following:
Product ID:710336315
Product Name:G25165-1210 12G-10MJ
Product ID: 710000825 Product Name:G25165-1210 12GE-10MJ
UPC: 72053903003
Product ID: 710000825 Product Name:
UPC: 72053903003
