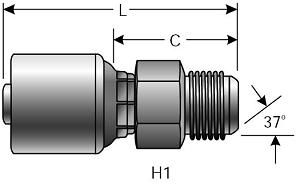

Gates 12G-10MJXBULK - Hydraulic Hose Fitting
| SKU | 7103-3631 |
|---|---|
| Weight | 0.593000 |
| H1 Stem Hex (mm) | 27 |
| L Length (in) | 3.68 |
| L Length (mm) | 93.5 |
| C Cutoff (in) | 1.67 |
| C Cutoff (mm) | 42.5 |
| Female Thread Id (mm) | 20.6 |
| Male Thread Od (mm) | 22.2 |
| Up Sell | 7103-36315 |
| Part Number 1 | 12G-10MJXBULK |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$17.65
Thread Identification:
| Thread Size | 7/8-14 |
| Female Thread I.D. (in) | 13/16 (0.812) |
| Female Thread I.D. (mm) | 20.6 |
| Male Thread O.D. (in) | 7/8 (0.875) |
| Male Thread O.D. (mm) | 22.2 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12M2T Hydraulic Hose Assembly | 3/4 | 1.11 | 3500 | 14000 | 3.8 |
| Gates 12M4K Hydraulic Hose Assembly | 3/4 | 1.17 | 4000 | 16000 | 3.8 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 12G-10MJ - G25165-1210 Hydraulic Hose Fitting | 1 | 1 |
$23.83
|
This Product Replaces the Following:
Product ID:71033631
Product Name: 12G-10MJXBULK
UPC: 770075433293
